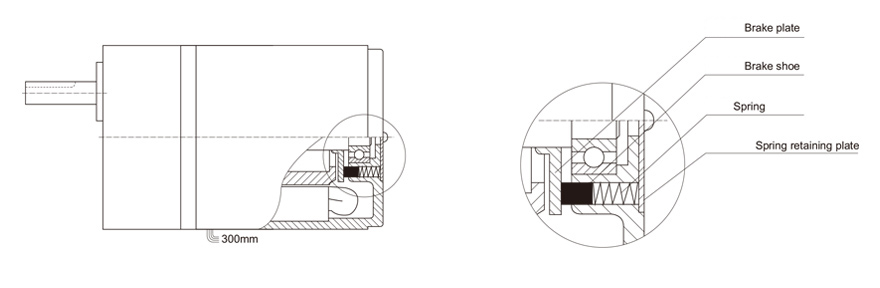

STRUCTURE DAMPER DIAGRAM
For the related data after mounting the reduction gear,please,consult the YYCJ-type reducttion gear motor

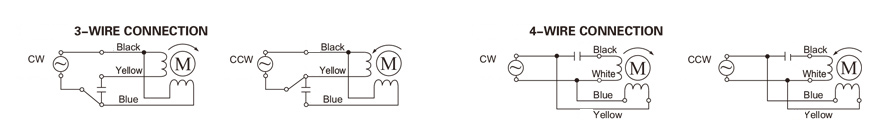

WIRING DIAGRAM
FEATURES OF USE
1. configuration is tight and capability is fine.
2. be the same with the range of 40W-120W of electromotor's power.
3. at two seconds off when the electromotor breaks off
4. have enough separation and combine torque, can realize a emergent separation and combine rapidly.
5. especially used in all kinds of sets required with jump-start frequently.
6. based on the application requests of the clients,Adjust the delicacy properly.
