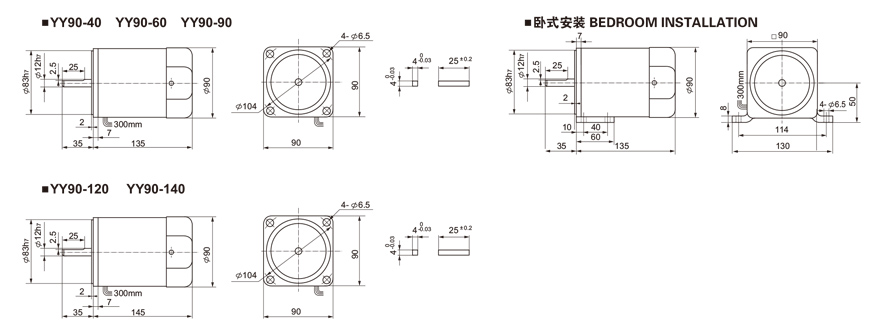

外形尺寸
接线图
电机参数
| 型号 | 级数 | 功率 | 电压 | 频率 | 电流 | 起动转距 | 额定转距 | 额定转速 | 电容 |
| Type | No.of | Power | Voltage | Frequency | Current | Starting torque | Rated torque | Rated speed | Capacitor |
| P | W | V | Hz | A | mN.m(g.cm) | mN.m(g.cm) | r/min | μF/V Ac | |
| YY90-40 | 2 | 40 | 110 | 50/60 | 0.60 | 109(1110) | 142(1450) | 2800/3000 | 8/250 |
| YY90-40 | 2 | 40 | 220 | 50 | 0.30 | 109(1110) | 142(1450) | 2800 | 2/450 |
| YY90-60 | 2 | 60 | 110 | 50/60 | 1.10 | 166(1700) | 215(2200) | 2800/3000 | 8/250 |
| YY90-60 | 2 | 60 | 220 | 50 | 0.53 | 166(1700) | 215(2200) | 2800 | 2/450 |
| YY90-90 | 2 | 90 | 110 | 50/60 | 1.20 | 255(2596) | 313(3200) | 2800/3000 | 20/250 |
| YY90-90 | 2 | 90 | 220 | 50 | 0.60 | 255(2596) | 313(3200) | 2800 | 4/450 |
| YY90-120 | 2 | 120 | 110 | 50/60 | 1.60 | 340(3461) | 412(4200) | 2800/3000 | 20/250 |
| YY90-120 | 2 | 120 | 220 | 50 | 0.80 | 340(3461) | 412(4200) | 2800 | 4/450 |
| YY90-140 | 2 | 140 | 110 | 50/60 | 2.00 | 441(4500) | 510(5200) | 2800/3000 | 25/250 |
| YY90-140 | 2 | 140 | 220 | 50 | 1.00 | 441(4500) | 510(5200) | 2800 | 5/450 |
